FEIE Cloud Print, the Ultimate Printing Solution for Mobile Payment Orders
| Main body
|
|
|---|---|

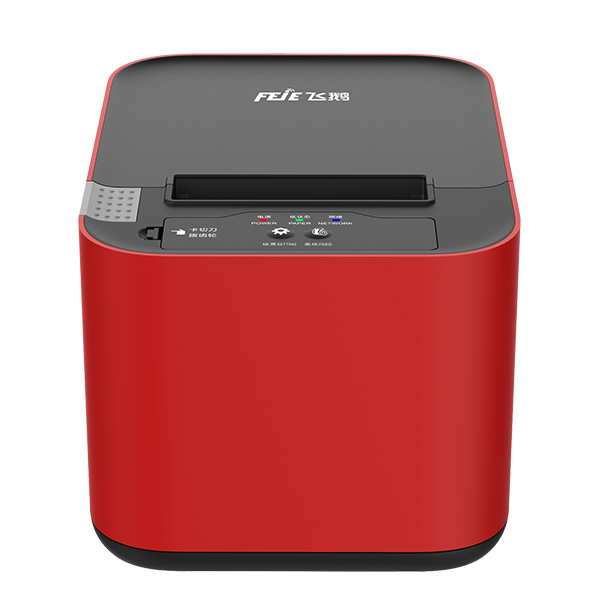

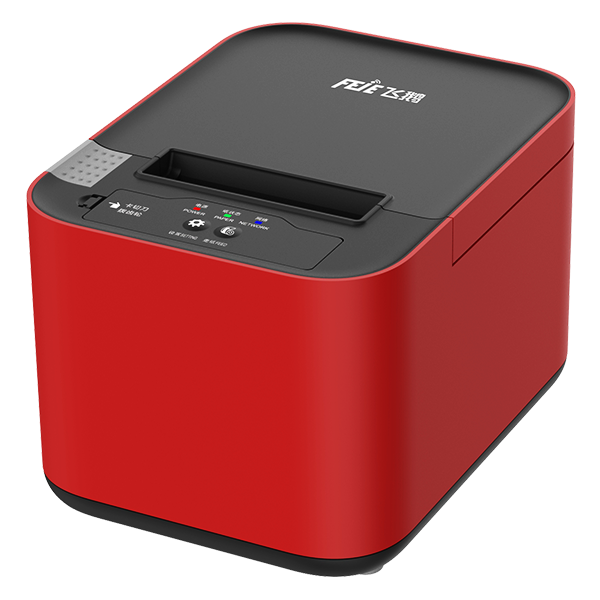

| Name | FEIE 58mm Smart Printer (WiFi/4G/Ethernet) |
| Model | FP-V58-W(C)、FP-V58-H(C)、FP-V58-E(C)【With/without Built-in cutter】 |

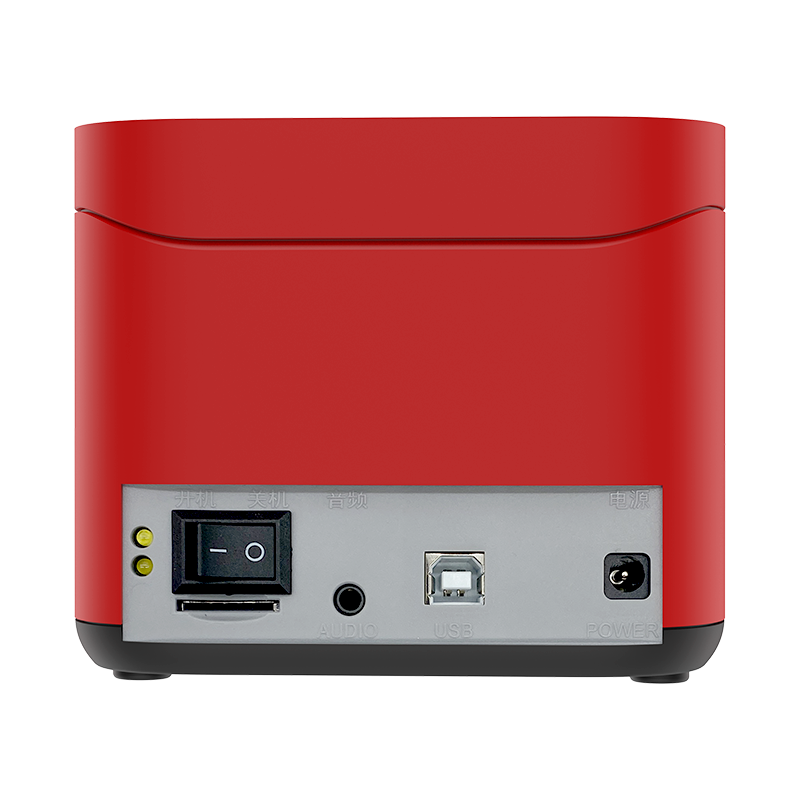

| Interface type | WiFi, 4G, Ethernet (LAN), WiFi+4G, USB |

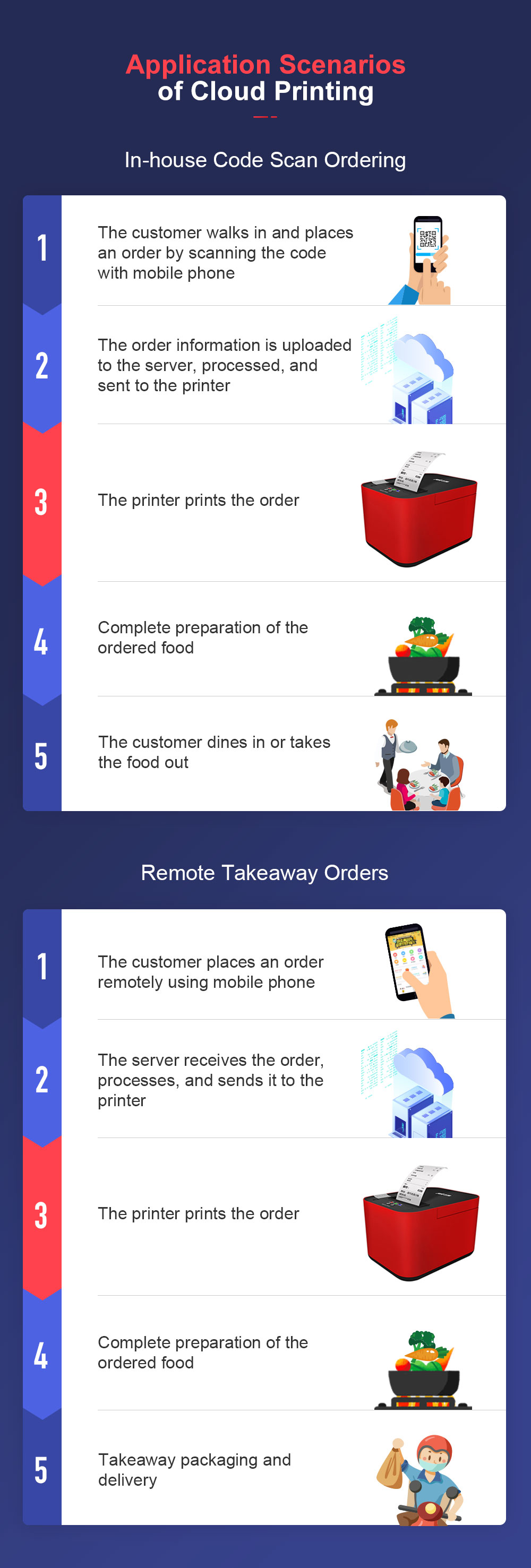

| Order way | Internet network interface/computer application/mobile application |
| Integrated way | API/ Driver integration |
| Monitoring management | Online, paper shortage status query |
| Single prompt | Didi/Real voice |
| External speaker | Support (3.5 mm interface speaker) |
| External cash register | support |
| Print
|
|
|---|---|
| Printing mode | Direct line thermal printing |
| Automatic cutter | Have |
| graphics | Support two-dimensional code, bar code,LOGO printing |
| Print width | 48mm |
| Paper size | Width of paper roll: 58mm, diameter of paper roll: maximum 60mm, thickness of paper: 0.065 to 0.085 mm |
| Point density | 384dots/line（203×203dpi） |
| Printing speed | 90 mm/s(Machine with knife)、 120 mm/s（Knife free machine） |
| Printing paper | 57.5 ± 0.5mm |
| Line spacing | 3.75mm(Can be changed with commands) |
| Number of columns | 58mm paper: Font A 32 column /Font B 42 column/simplified traditional 16 columns |
| Character size | ANK character; Font A: 1.5×3.0 mm (12×24 points); Font B 1.1× 2.1mm (9×17 points); 3.0 x 3.0 mm (24 x 24 dots) |
| Font library | GB18030 |
| Paper out sensor | Out of paper alarm |
| Color | Red and other colors to be customized |
| USB print | Support ESC/POS instruction printing and drive printing |
| Physical properties
|
|
|---|---|
| Input buffer | 64K Bytes |
| NV Flash | 512K Bytes |
| Power supply | Input AC 100V/240V, 50 ~ 60Hz |
| Power adapter | DC12V/2.5A (Knife type)、 DC8.5V/3A（Without knife type） |
| Weight | 0.74 kg |
| External dimension | 160 * 120 * 100 mm (length x width x height) |
| Install | Level |
| Bar code | Code39, Code128, UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13, Code93,ITF,CODABAR |
| Qr code | QR code,PDF417(custom） |
| Working environment | Temperature：0～45℃ humidity：10～80% |
| Storage environment | Temperature：-10～60℃ humidity：10～90%（No condensation ） |

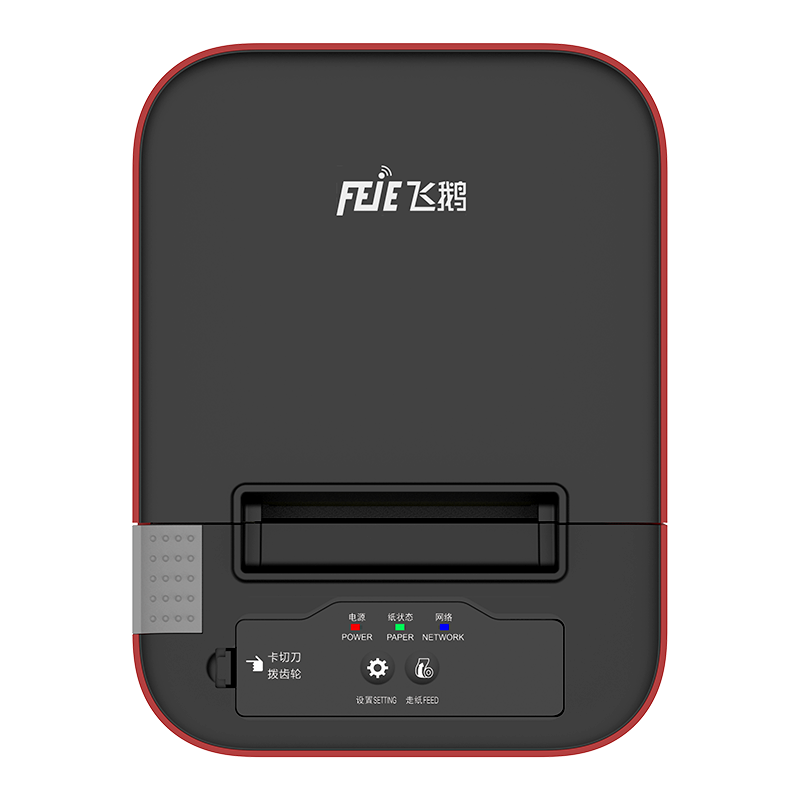

| Indicator light | Power light (red), paper status light (green), Network light (blue), module indicator light (yellow) |
| Support language | Simplified Chinese, traditional Chinese, English, Japanese, German (code page setting), Spanish (code page setting), Italian (code page setting), more languages please consult before sales |

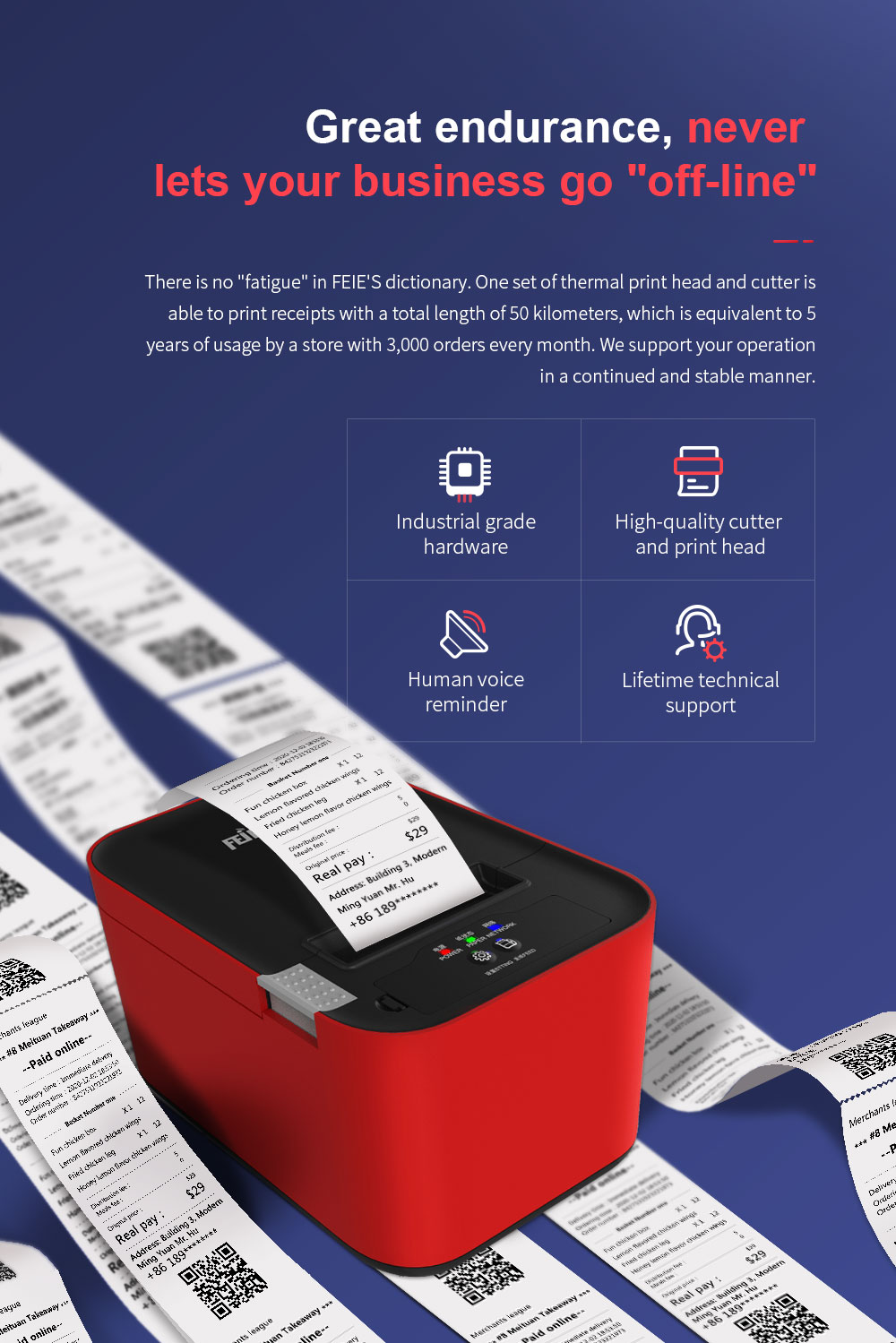

| The print head life | 50 km |
| Cutter life | 1 million times |
| Product certification | 3C |
| Quality standard | ISO9001 |
