More stable network connection for order processing with zero omissions
| Main body
|
|
|---|---|

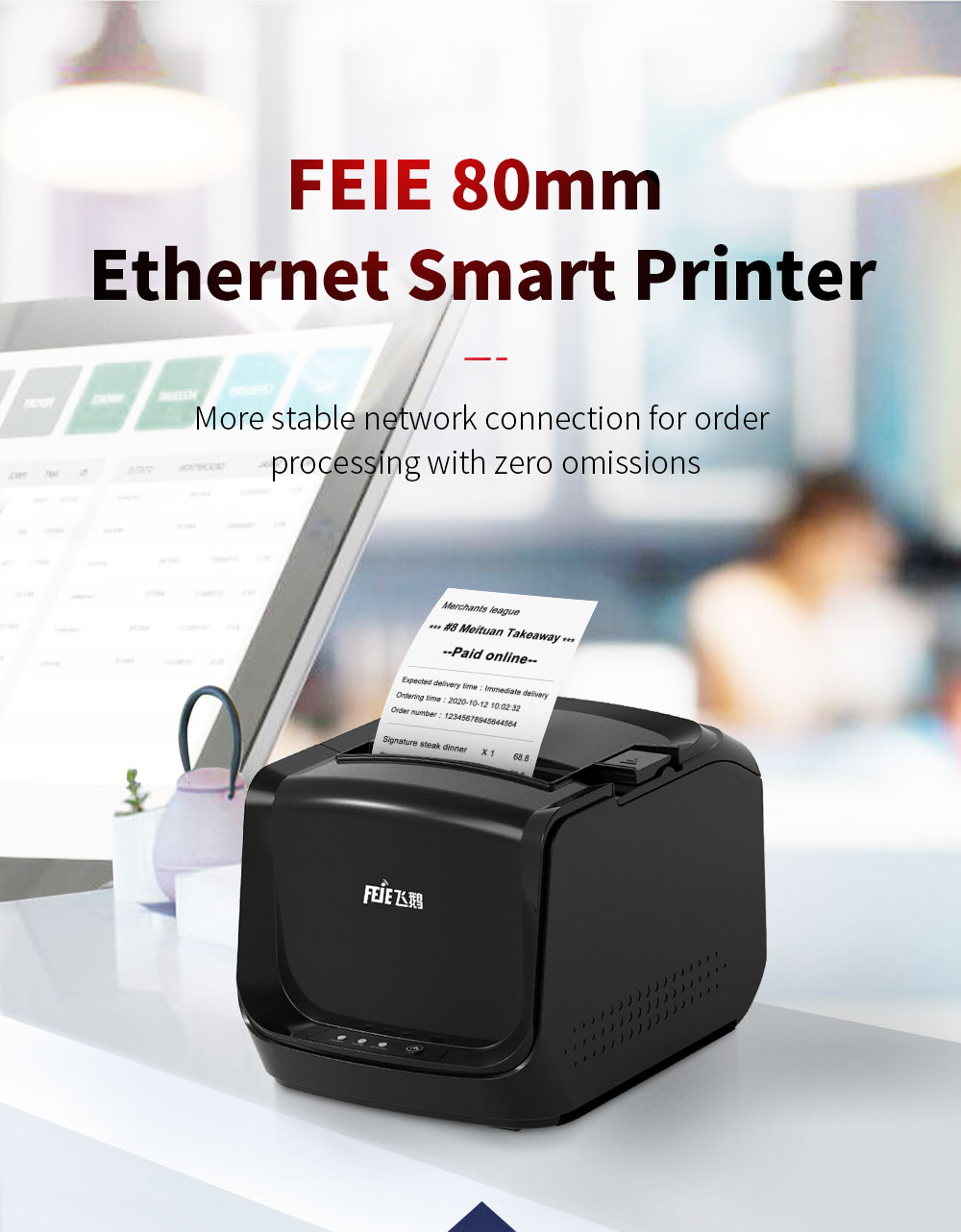

| Name | 80mm Ethernet Smart Printer |
| Model | FP-N80-EC(80mm、Built-in cutter) |

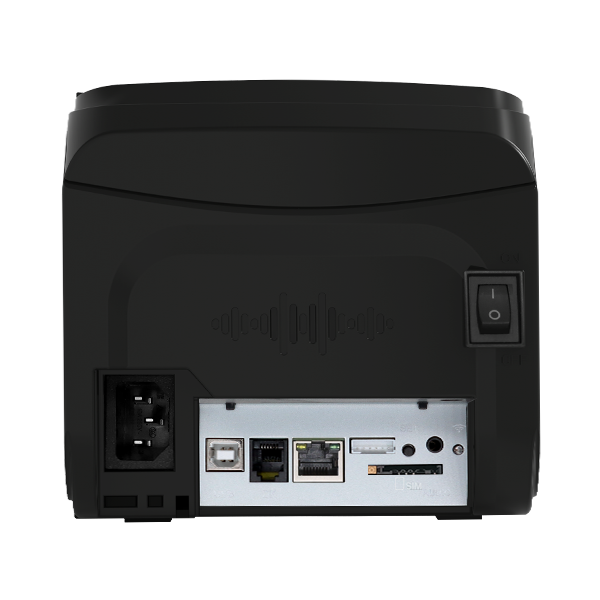

| Interface type | Wired network、USB |
| Order way | Internet network interface/Mobile application |
| Integrated way | API/ Driver integration |
| Monitoring management | Online, paper shortage status query |
| Built-in voice | Human voice |
| External speaker | support |
| Print
|
|
|---|---|
| Printing mode | Direct line thermal sensitivity |
| Automatic cutter | Yes |
| graphics | Support two-dimensional code, bar code,LOGO printing |
| Print width | 72 mm |
| Point density | 576dots/line |
| Printing speed | 180 mm/s |
| Paper size | Width of paper roll: 79.5mm ± 0.5mm, diameter of paper roll: maximum 83mm |
| Line spacing | 3.75mm(Can be changed with commands) |
| Number of columns | 80mm paper: Font A 48 /Font B 64 / simplified traditional 24 columns |
| Character size | ANK character, Font A 1.5×3.0mm (12×24 points) Font B 1.1×2.1mm (9×17 points) |
| Font library | GB18030 |
| Paper out sensor | Out of paper alarm |
| Color | Black |
| USB print | Support ESC/POS instruction printing and drive printing |
| Physical properties
|
|
|---|---|
| The input buffer | 32K Bytes |
| NV Flash | 64 K Bytes |
| Power supply | Input AC 110V/220V，50～60Hz |
| Power adapter | DC24V/2.5A |
| Weight | 1202g |
| External dimension | 205mm x 148mm x 139mm (length x width x height) |
| Install | Level |
| Bar code | Code39,Code128, UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13, Code93, ITF,CODABAR |
| Qr code | QR code |
| Working environment | Temperature: 5 ~ 45℃ Humidity: 10 ~ 80% |
| Storage environment | Temperature: -10 ~ 50℃ Humidity: 10-90% (No condensation ) |
| Indicator light | Power light (red), paper status light (green), Network light (blue), module indicator light (yellow) |
| Support language | Simplified Chinese, Traditional Chinese, English, Japanese, Japanese Jis X0208-1990 (hardware customization), Russian (Code page setup), German (Code page Setup), Spanish (Code page Setup), Italian (Code page Setup) |
| The print head life | 50 km |
| Cutter life | 1 million times |
| Product certification | 3C |
| Quality standard | ISO9001 |
